Safety valve
La válvula de seguridad Alfa Laval es una válvula de alivio higiénica y versátil, accionada por resorte, que evita la acumulación de presión en tanques de proceso, recipientes y equipos debido a una descarga obstruida, a la expansión térmica, a reacciones químicas o a una combinación de estos factores.
Válvula de alivio compacta con resorte que minimiza el riesgo de implosión de los depósitos cuando se produce una situación de vacío
- Funcionamiento seguro y fiable
- Diseño higiénico
- Evita fugas y desbordamientos insalubres
- Protege tanto al personal como al equipo contra accidentes provocados por sobrepresión
- Sobrescritura opcional, manual o automática, para la limpieza de válvulas
Esta válvula de seguridad es ideal para su uso en los sectores lácteo, alimentario, de bebidas, biotecnológico, farmacéutico y muchos otros.
How does the spring-loaded relief valve work?

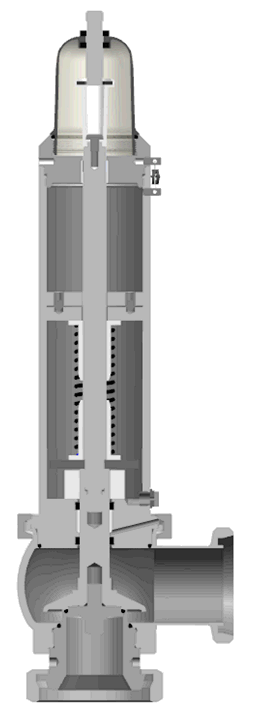

Construction
The Alfa Laval Safety Valve comes in sizes from DN25 to DN100 with spring loaded set pressure range from 0.2 to 12.0 bar. The valve can be pneumatic or manually operated. The Alfa Laval Safety Valve is calibrated to the desired pressure set point, sealed and delivered with a corresponding PED certificate.
Operating principle
The closing force in the safety valve is applied by a compressed spring with a set pressure greater than the operating pressure.
In a potentially dangerous situation, the spring-loaded relief valve will open at the predetermined set pressure. The spring force acts in the closing direction and the force created by the pressure at the inlet of the safety valve acts in the opening direction. At a certain point, these forces will be balanced out and the safety valve will make an initial discharge to relieve the pressure.
Relieve excess pressure
Pressure can build inside vessels or systems due to blocked discharge, thermal expansion, chemical reactions, or a combination of these events. The spring-loaded relief valve is designed to flexibly relieve excess pressure from vessels or equipment at all times and under any circumstances. As the last and vital component in accident prevention, a high-quality, hygienic safety valve is an essential part of your operations.
Get the perfect fit
Depending on the causes of excess pressure, a different mass or volume flow may need to be discharged. With this type of variable flow, a perfectly fitted safety valve is essential. The Alfa Laval Safety Valve comes in sizes from DN25 to DN100 with a spring-loaded set pressure range between 0.2 and 12.0 bar depending on the size of the valve.
Reliable protection
In a potentially dangerous situation, the Alfa Laval Safety Valve is designed to open at a predetermined set pressure. The compressed spring force, which keeps the valve closed below the set pressure, is forced open when pressure builds up at the inlet of the safety valve. As these forces balance out, the valve will discharge and decrease pressure, ultimately reclosing as the system returns to normal.
