LabStak M10

The LabStak® M10 is the smallest and most compact of the Alfa Laval units for cross-flow membrane filtration. This versatile unit is an ideal tool for educational purposes and for research and development work. The Alfa Laval LabStak® M10 can be used with the complete range of Alfa Laval flat sheet membranes available for ultrafiltration and microfiltration.

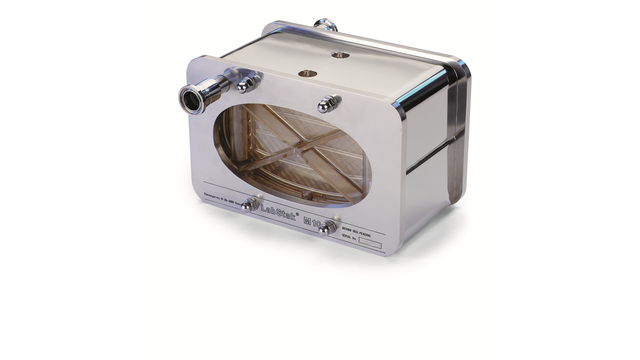

labstak m10 left side 640x360

Handy and flexible

With a membrane area of only 336 cm² the Alfa Laval LabStak® M10 is the smallest unit in the range of  laboratory equipment offered by Alfa Laval. The design is simple, but the results obtained are comprehensive and reliable.

The Alfa Laval LabStak® M10 is an extremely reliable, yet easy to use, unit for process development and optimization, scaling-up as well as training purposes. The flexibility to install and test two membranes simultaneously makes it an efficient tool for initial membrane selection.

Alfa Laval LabUnit M10

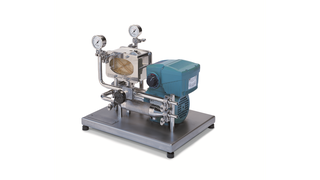

Alfa Laval LabUnit M10_320x180pxThe Alfa Laval LabUnit M10 is a fully integrated system comprising an Alfa Laval LabStak® M10 unit complete with necessary pump, valve, heat exchanger and instrumentation.

Benefits

  • membrane area of only 336 cm²
  • easy exchange of membranes
  • transparent plate for observation of cross-flow
  • simultaneous test of two different membrane types
  • high operating temperature (80°C)
  • small test media volume (1-3 litres)
  • hold-up volume only 57 ml
  • flow pattern similar to that of larger modules
  • all components in compliance with FDA and ECC regulations, allowing use within food and pharmaceutical processing applications

Cómo funciona

La corriente de alimentación/retenido fluye a través de los canales abiertos a través de la superficie de la membrana en la unidad de placa y marco llamada módulo LabStakTM M10.

La membrana está soportada por placas huecas con numerosas ranuras que permiten que el permeado sea recogido y retirado de la unidad a través de los tubos colectores de permeado.

Las unidades de placa y marco usan la membrana en sí, ayudada por anillos o tiras de bloqueo, para sellar la alimentación/retenido y evitar cualquier mezcla con el permeado. Esto también evita fugas de la placa.

LabUnit M10 flow diagram
