LKB-F

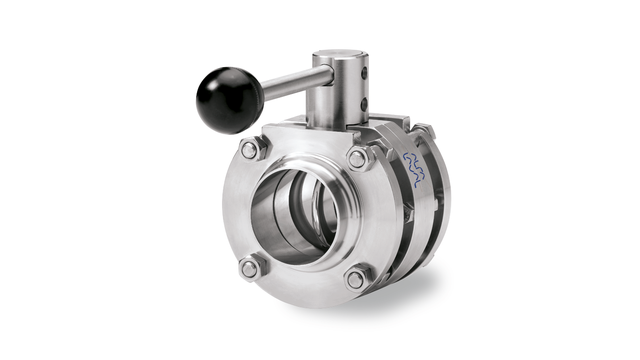

Special flange version of the LKB butterfly valve that makes it easy to remove the valve body without needing to dismantle piping set-ups. This in turn makes it easy to undertake repair, service and replacement with a bare minimum of disruption.
Full range, full spectrum
The Alfa Laval LKB butterfly valve range consists of modular units designed to meet the full spectrum of requirements at working pressures from full vacuum to 10 bar. All valves are FDA-compliant, designed for use in a wide range of stainless steel pipe systems, and can be built to comply with virtually any installation standard. Alfa Laval LKB-F for flange connections to easily remove the valve body without dismantling piping setups. For both ISO and DIN.
Reliable performance
LKB-F butterfly valves come with several features that ensure reliability performance. A highly polished stainless steel disc with surface smoothness down to Ra<0.8 µm and bearing bushes clipped onto the disc stems prevent metal-to-metal abrasion and ensure smoother disc movement.
The stem diameter provides particularly low flow resistance, ensuring gentle product treatment for low and medium-viscosity products. In addition, Alfa Laval seal technology provides greater thermal stability, better chemical resistance and improved tensile strength.
Manual or automated control
Alfa Laval LKB-F butterfly valves can be complemented with lockable handle for manual operation of with an actuator and in combination with either a valve indication unit or Alfa Laval ThinkTop valve sensing and control units.
For manual operation: Alfa Laval provides a complete range of handles, including a multi-position lockable handle.
For automated operation: A selection of different actuators is available; special double-spring design enables application of maximum torque to the valve disc at breakaway and seal positions. This makes it easy to integrate these valve units into larger systems operated from a central point, and/or to operate them automatically for maximum efficiency.
Product benefits
- Easy maintenance
- Robust design
- Modular with LKB valves
Catálogo de productos
Cómo funciona
La instalación de la válvula Alfa Laval LKB-F es sencilla: basta con acoplar los dos extremos con bridas de las entradas y salidas de la válvula a las bridas de las tuberías del sistema. Se puede utilizar un actuador neumático controlado a distancia para el control automatizado del proceso o una manivela para regular el caudal manualmente. El actuador está disponible en tres versiones estándar: normalmente cerrada (NC), normalmente abierta (NO) y activada por aire/aire (A/A).
En el funcionamiento neumático, un actuador transforma el movimiento axial del pistón en una rotación de 90° del eje. El par del actuador aumenta a medida que el disco de la válvula entra en contacto con el anillo de sellado de la válvula de mariposa, lo que garantiza el cierre adecuado del asiento de la válvula.
Para el accionamiento manual, una maneta bloquea mecánicamente la válvula en posición abierta o cerrada. Hay disponibles manetas de dos posiciones, de cuatro posiciones, de regulación de 90° y multiposición. Las válvulas manuales también pueden equiparse con unidades de indicación para conocer la posición de la válvula (abierta/cerrada).
El mantenimiento resulta sencillo gracias a las dos bridas y los dos anillos de sellado de brida, que facilitan la extracción del cuerpo de la válvula sin necesidad de desmontar el sistema de tuberías. Las unidades opcionales de detección y control de la válvula permiten un manejo intuitivo de la válvula de mariposa LKB-F de Alfa Laval con doble brida.
Manual or automatic operation for LKB and LKB-F
The automated LKB butterfly valve is controlled from remote location by means of compressed air using a pneumatic actuator.
The actuator controls the axial movement of a piston, which rotates the shaft 90°. The torque exerted by the actuator increases when the valve disc contacts the valve sealing ring, to ensure effective closing. The actuator is available in three standard versions: normally closed (NC), normally open (NO) and air/air activated (A/A). Manual handle is available.
